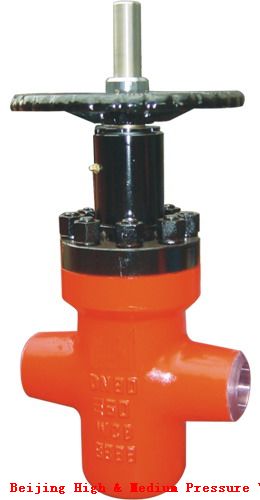

| Product Name：Z63Y Water gate valve |
| Product Classification：Gate valves |
| Product Introduction： |
Injection valve is an automatic water seal water system installations. Built-in check valve and filter
|
|
| Description |
Parameters |
Size Chart |
Application |
|
| Standard and Standard : |
| 1.the design,manufacture according toGB/T5298,API6D |
| 2.The structure according to the length of GB/T12221,GB/T5298 |
| 4.Valve inspection and testing by JB/T9092-1999 |
| |
| Feature: |
| 1.Working temperature:-29℃-121℃ |
| 2.Suitable media:Oil,Gas,Water |
| 3.nominal diameter:25-200mm |
| 4.nominal pressure:10.0-42.0Mpa |
| | |
| materials |
| 1.gate body,bonnet:WCB,Cr5Mo |
| 2.gate Disc:alloy steel |
| 3.Stem:2Cr13 |
| 4.Seat:alloy steel |
| 5.Stem nut:aluminum bronze |
| 6.Packing:PTFE,fluorous rubber. |
|

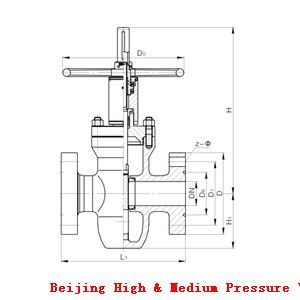

產(chǎn)品外形及結(jié)構(gòu)尺寸示意圖
 |
1: automatic water valves can be mounted horizontally or vertically, but not inverted, that is not in the upper part of the plastic knob 2: watch the outlet pressure gauge, adjust the top of the hexagonal brass nut until it reaches the desired operating pressure of system 3: auto-complete suggestions set higher than the hydrostatic pressure valve 0.3 kilograms but less than the water pressure needed to set the value, otherwise there can not be normal water 4: automatic injection valve to automatically set the water pressure, water longer. 5: If you need to interrupt automatic replenishment, you can manually turn off the automatic cut-off valve on the water valve 6: If the valve can be replaced or cleaned dirty flat gate valve
|
|
